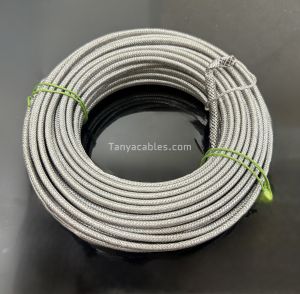

Heat Trace Cables

We offer Electric heat tracing cables which are used for freeze protection or temperature maintenance of piping, tanks and many kinds of instrumentation.


Specifications

Cable Single or Twin Conductor, As per requirement.
Tolerance Ohmic Value +7% to -7%
Sheath PTFE Tape wrapped or SS Braid
Conductor Insulation FG and PTFE Tape wrapped
Cold Tail Length 1Mtr. PTFE Insulated
Length of Cable As per requirement.
Width of Cable 4.00mm to 6.00mm
Watts per Meter 8W/M to 50W/M
Rated Voltage 230 V Or 110V
Packing Predefined Lengths or Long Lengths

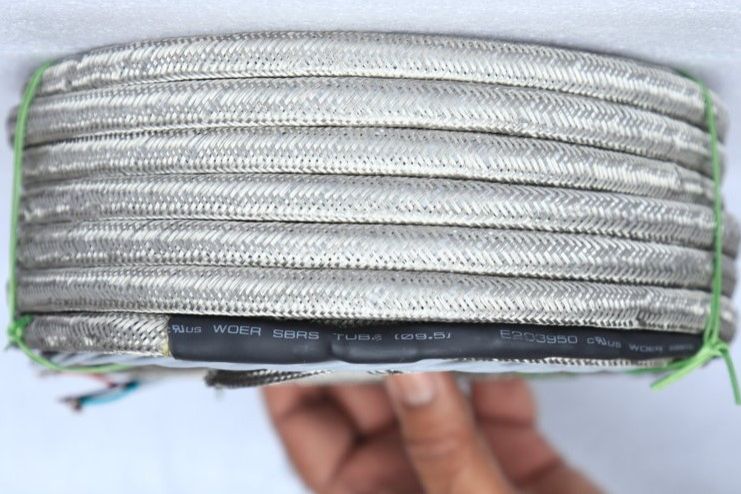

  • Heat Trace Cables 01

  • Heat Trace Cables 02
