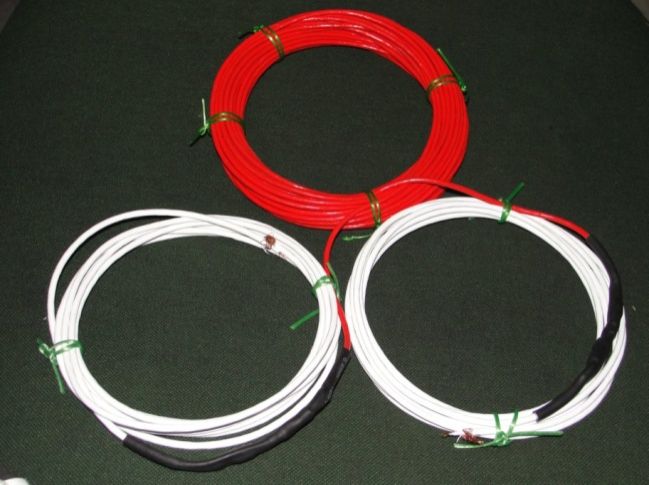

Single Conductor Screened Heating Cable

Our Single Conductor Screened Heating wires are thin and made by multistrand as well as single solid strand conductor depending on Ohmic Value. Nominal Outer Diameter of Single Conductor Insulated Screened Heating cable is only approx. 2.20mm thick.

These cables are manufactured by high quality resistance wires with PTFE Tape wrapping and fusion method. Due to PTFE insulation our cables withstand -60°C to +260°C continuously. These cables are Bare Copper braided which provide them maximum safety, toughness and mechanical strength which make them able to install in Rooms, Bathrooms, Kitchens.

We are supplying Heating cables in long lengths or pre-cut lengths with or without cold tail attached as per customer need.


Specifications

Cable Properties Single conductor Screened
Packing Long Length or Pre Cut Lengths in coils or reels
Tolerance Ohmic range - 5% to +10%
Outer Diameter of Cable Approx. 2.20mm
Outer Jacket Insulation PTFE, FEP, ETFE or PVC as required
Screening Bare Copper Braid
Inner Conductor Insulation PTFE
Cold Tail Length 2 X 3M PTFE
Watt Per Mtr. 8W/M to 30W/M
Voltage 230V
Wattage 150W to 3000W
Application Underfloor or Undertile heating etc.
