Single Conductor Unscreened Heating Cables

We are offering Heating Cables for Undertile heating, Under Carpet Heating and for many more application.

Our Single conductor Unscreened Heating wires are thin and made by multistrand as well as single solid strand conductor depending on Ohmic Value. Nominal Outer Diameter of Single conductor Insulated Heating wire is only approx. 0.80mm to 1.300mm.

We are supplying Heating cables in long lengths or pre-cut lengths with or without cold tail attached as per customer need.


Specifications

Cable Properties Single conductor without Screen
Ohmic Value 0.05Ohm/M to 500Ohm/M
Wattage Per Mtr. 8W/M to 200W/M
Diameter of Insulated wire 0.80mm to 2.50mm and subject to Ohmic Value
Cold Tail Length 2 X 3m – Optional
Conductor Insulation PTFE, FEP, ETFE, PFA or PVC as per requirement
Tolerance Ohmic range -5% to +10%
Packing Long Length or Pre Cut Lengths in coils or reels
Application Under Carpet, Seat Heater, Heating Pads and Electric Blanket etc.

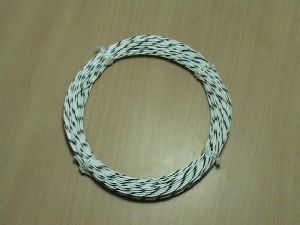

  • Single Conductor Unscreened Heating Cables 01

  • Single Conductor Unscreened Heating Cables 02
