3 Core RTD Cables

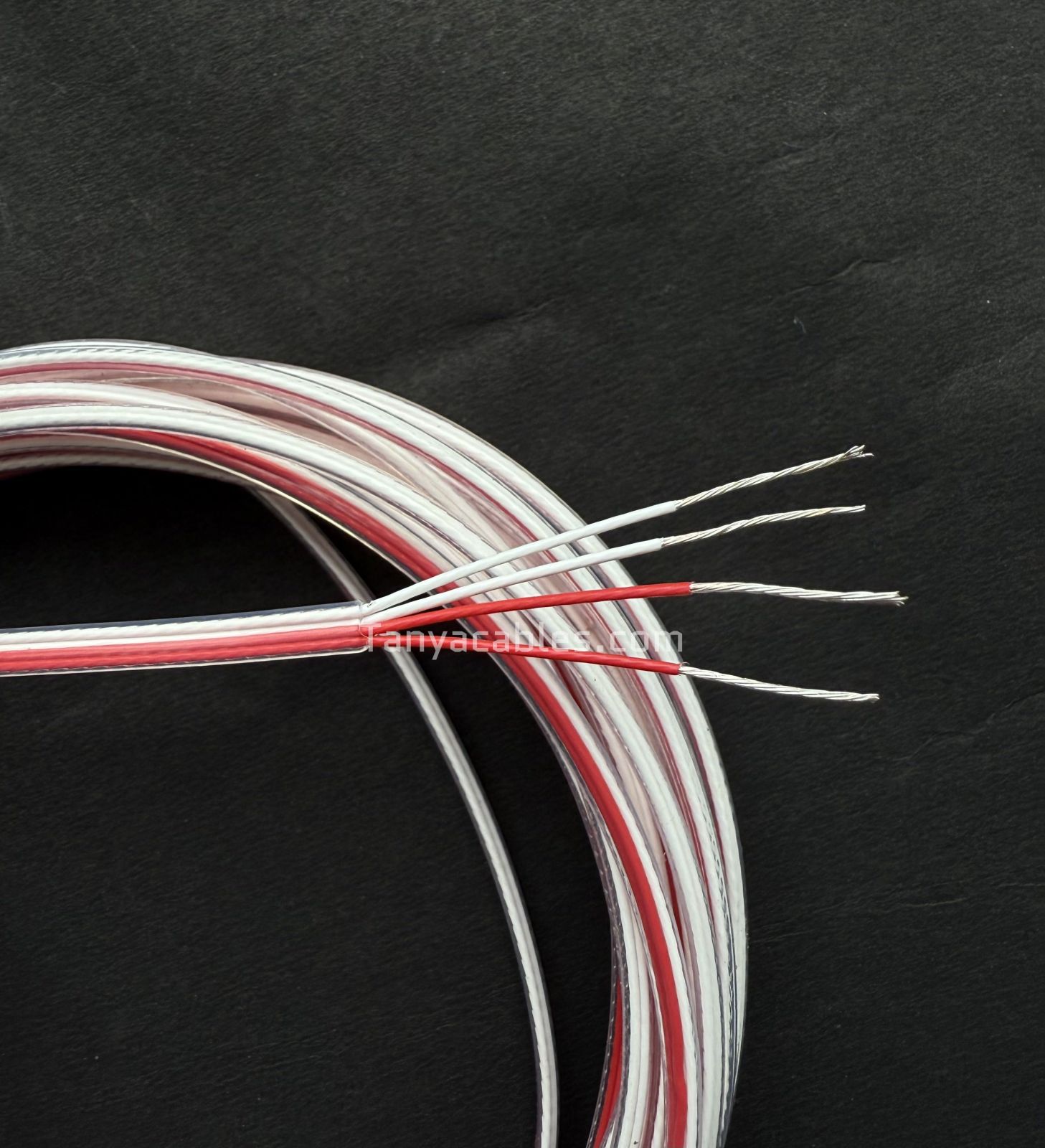

Pt100 3 Core RTD Cable
Send Enquiry

Product Details

Item Name 3 Core Pt100 Cable, SPC, PTFE/Silicon
Conductor Size in AWG and Sq.mm. AWG 24/7/32, 0.220Sq.mm.
Conductor Dia 0.60mm MM +/- 0.03MM
Conductor Material Silver Plated Copper
Core Insulation PTFE Tape Wrapped
Od of Inner Core 0.90mm +/- 0.05mm
Core Colors As per Customer requirement
No. of Cores 3
Overall Jacket Silicon
Voltage Grade 250V
Working Temperature -65OC to +200OC
Overall Diameter Max. 3.80mm

Yes! I am interested


Pt100 RTD 3 Core RTD Cable
Send Enquiry

Product Details

Item Name 3 Core Pt100 RTD Cable, SPC, PTFE/Silicon
Conductor Size in AWG and Sq.mm. AWG 24/7/32, 0.220Sq.mm.
Conductor Dia 0.60 MM +/- 0.03MM
Conductor Material Silver Plated Copper
Core Insulation PTFE Tape Wrapped
Od of Inner Core 0.90mm +/- 0.05mm
Core Colors As per Customer requirement
No. of Cores 3
Overall Jacket Silicon
Voltage Grade 250V
Working Temperature -65OC to +200OC
Overall Diameter Max. 3.80mm

Yes! I am interested

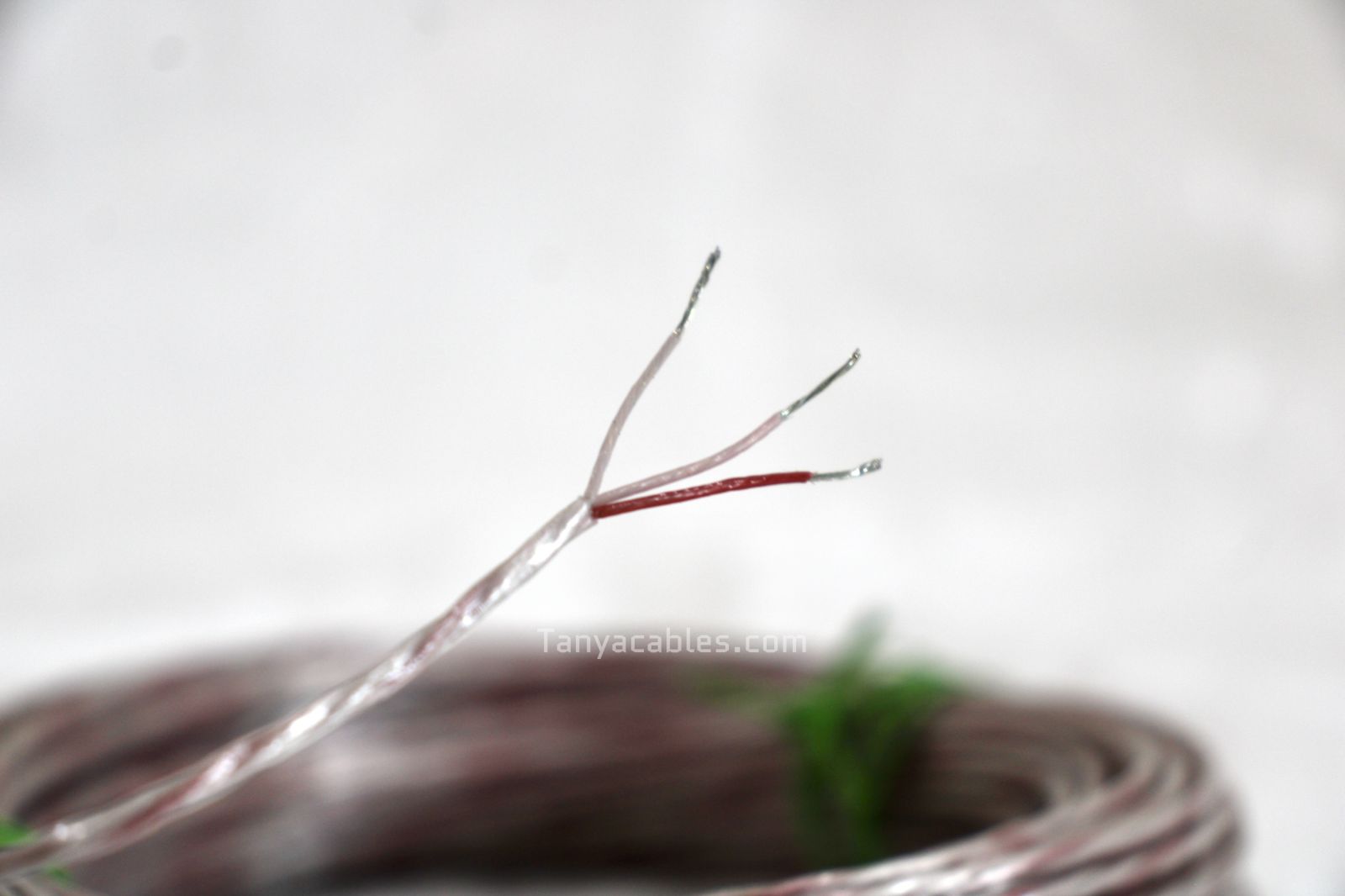

Pt200 3 Core RTD Cable
Send Enquiry

Product Details

Item Name 3 Core RTD Cable, SPC, PTFE/Silicon
Conductor Size in AWG and Sq.mm. AWG 24/7/32, 0.220Sq.mm.
Conductor Dia 0.60MM +/- 0.03MM
Conductor Material Silver Plated Copper
Core Insulation PTFE Tape Wrapped
Od of Inner Core 0.90mm +/- 0.05mm
Core Colors As per Customer requirement
No. of Cores 3
Overall Jacket Silicon
Voltage Grade 250V
Working Temperature -65OC to +200OC
Overall Diameter Max. 3.80mm

Yes! I am interested
