PTFE Sleeves

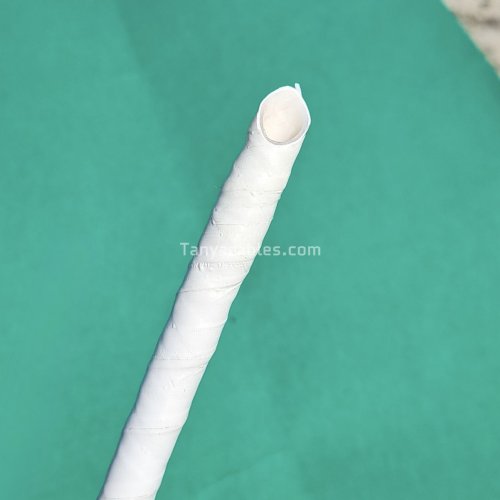

PTFE Sleeves Manufacturer


The PTFE Sleeves offered by us is well-known for its extreme endurance of temperature. The PTFE Electrical Sleeves of our company is manufactured using the latest technology which ensures non-flammability and High Dielectric strength. The PTFE Insulated Sleeves are well-marked for their brilliant anti-stick properties, which prevents the building up of sediments and fungus. Moreover, these are very much hydro-phobic and shed water almost properly. We are a reliable Manufacturer and among the major Suppliers of premium quality PTFE Sleeves.

Few advantages of PTFE Insulation are as follows:

\n
    \n
      \n
    • Extremely stable at high temperatures and can be used continuously at –65°C to -250°C.
    • \n
    \n
\n



\n
    \n
      \n
    • Non-Flammable
    • \n
    \n
\n



\n
    \n
      \n
    • High Dielectric strength
    • \n
    \n
\n



\n
    \n
      \n
    • Virtually inert to almost known chemicals, UV radiation, oils, solvents and fluxes
    • \n
    \n
\n



\n
    \n
      \n
    • Excellent anti-stick properties prevents the build up of sediments, and fungus
    • \n
    \n
\n



\n
    \n
      \n
    • Biocompatible
    • \n
    \n
\n



\n
    \n
  • Extremely hydro-phobic and sheds water almost totally
  • \n
\n



Applications of PTFE Sleevings and Tubings:

\n
    \n
      \n
    • Radars, Satellites and other defense electronics equipments
    • \n
    \n
\n



\n
    \n
      \n
    • Due to high temperature proximity widely used for heater interconnections
    • \n
    \n
\n



\n
    \n
      \n
    • Insulating cover for electrical joints, Motor winding leads and Transformer winding leads
    • \n
    \n
\n



\n
    \n
      \n
    • Protective cover over electrical leads in Air-conditioning sealed units
    • \n
    \n
\n



\n
    \n
      \n
    • RF Signal transmission, antennas
    • \n
    \n
\n



\n
    \n
      \n
    • For branching leads in harness/cable assembly
    • \n
    \n
\n



\n
    \n
      \n
    • In communications, control Instruments and professional electronics
    • \n
    \n
\n



\n
    \n
      \n
    • As carriers for corrosive, high viscosity chemicals or fluids, also under high pressure and temperature
    • \n
    \n
\n



\n
    \n
      \n
    • As protective cover over hoses for injection moulding machines
    • \n
    \n
\n



\n
    \n
      \n
    • Hoses (with or without stainless steel wire braid) for hydraulic/pneumatic applications
    • \n
    \n
\n



\n
    \n
      \n
    • As capillaries for medical application
    • \n
    \n
\n



\n
    \n
  • Temperature sensors, Automobiles etc.
  • \n

Specifications

Brand Name Tanya
Product Name PTFE Sleeves
High Temperatures –65°C to +250°C.
Condition Good
Place Of Origin Meerut,U.P

Additional Information

Min. Order Quantity 500 Meter
Payment Terms T/T
Delivery Time 3 to 4 Days (Min.)


Technical Details
Dielectric Breakdown:

Lengthwise shrinkage after 2 Hours at 300°C : 1% Max.

Wall thickness Volts (AC RMS)
0.25MM 11,500
0.30MM 14,600
0.40MM 16,300
16,300 17,000

Datasheets: S. I.D. (MM) Wall Thickness (MM)

I.D. (MM)   Wall Thickness (MM)
Nominal Tolerance Nominal Tolerance
0.50 +/-0.10 0.25 +/-0.05
1.00 +/-0.10 0.25 +/-0.05
1.50 +/-0.15 0.25 +/-0.08
2.00 +/-0.15 0.30 +/-0.08
2.00 +/-0.15 0.30 +/-0.08
3.00 +/-0.15 0.35 +/-0.08
4.00 +/-0.20 0.40 +/-0.08
5.00 +/-0.20 0.50 +/-0.10
6.00 +/-0.30 0.50 +/-0.10
7.00 +/-0.30 0.50 +/-0.10
8.00 +/-0.30 0.50 +/-0.10
9.00 +/-0.30 0.50 +/-0.10

Note: Sizes other then above table can also be Manufactured as per customer requirement. We also manufacture Sleevings with Fiber Glass/ Polyester Braiding for special applications.

Ordering Information:
Please specify nominal ID, wall thickness and colour.

Standard Packaging:



  • Upto 3.5 mm ID: 50/100 Mtr coils, 1-4 meters nominal, random lengths.

  • 4 mm or larger ID: 25/50 Mtr straight bundles, 1 meter nominal, random lengths.



  •
  • Cut lengths: Pieces cut to specified lengths also available.
