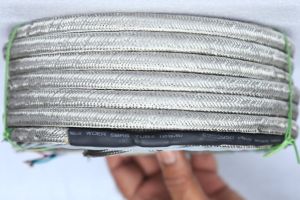

Leading Manufacturers, Exporters and Wholesaler of Heat Trace Cables, Single Conductor Screened Heating Cable, Single Conductor Unscreened Heating Cables, Twin Conductor Heating Cable and Underfloor Heating Mats from Meerut.
MOQ : 500 Meter
Business Type | Manufacturer, Exporter, Supplier |
Cable | Single or Twin Conductor, As per requirement. |
Rated Voltage | 230 V Or 110V |
Watts per Meter | 8W/M to 50W/M |
Width of Cable | 4.00mm to 6.00mm |
Length of Cable | As per requirement. |
Cold Tail Length | 1Mtr. PTFE Insulated |
Conductor Insulation | FG and PTFE Tape wrapped |
Sheath | PTFE Tape wrapped or SS Braid |
Tolerance Ohmic Value | +7% to -7% |
Packing | Predefined Lengths or Long Lengths |
Preferred Buyer From
Location | Anywhere in India |
We offer Electric heat tracing cables which are used for freeze protection or temperature maintenance of piping, tanks and many kinds of instrumentation.
MOQ : 500 Meter
Business Type | Manufacturer, Exporter, Supplier |
Cable Properties | Single conductor Screened |
Wattage | 150W to 3000W |
Voltage | 230V |
Watt Per Mtr. | 8W/M to 30W/M |
Cold Tail Length | 2 X 3M PTFE |
Inner Conductor Insulation | PTFE |
Screening | Bare Copper Braid |
Outer Jacket Insulation | PTFE, FEP, ETFE or PVC as required |
Outer Diameter of Cable | Approx. 2.20mm |
Tolerance Ohmic range | - 5% to +10% |
Packing | Long Length or Pre Cut Lengths in coils or reels |
Application | Underfloor or Undertile heating etc. |
Preferred Buyer From
Location | Anywhere in India |

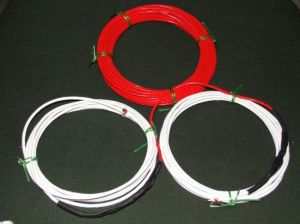

Our Single Conductor Screened Heating wires are thin and made by multistrand as well as single solid strand conductor depending on Ohmic Value. Nominal Outer Diameter of Single Conductor Insulated Screened Heating cable is only approx. 2.20mm thick.
These cables are manufactured by high quality resistance wires with PTFE Tape wrapping and fusion method. Due to PTFE insulation our cables withstand -60°C to +260°C continuously. These cables are Bare Copper braided which provide them maximum safety, toughness and mechanical strength which make them able to install in Rooms, Bathrooms, Kitchens.
We are supplying Heating cables in long lengths or pre-cut lengths with or without cold tail attached as per customer need.
MOQ : 500 Meter
Business Type | Manufacturer, Exporter, Supplier |
Cable Properties | Single conductor without Screen |
Ohmic Value | 0.05Ohm/M to 500Ohm/M |
Wattage Per Mtr. | 8W/M to 200W/M |
Diameter of Insulated wire | 0.80mm to 2.50mm and subject to Ohmic Value |
Cold Tail Length | 2 X 3m – Optional |
Conductor Insulation | PTFE, FEP, ETFE, PFA or PVC as per requirement |
Tolerance Ohmic range | -5% to +10% |
Packing | Long Length or Pre Cut Lengths in coils or reels |
Application | Under Carpet, Seat Heater, Heating Pads and Electric Blanket etc. |
Preferred Buyer From
Location | Anywhere in India |
We are offering Heating Cables for Undertile heating, Under Carpet Heating and for many more application.

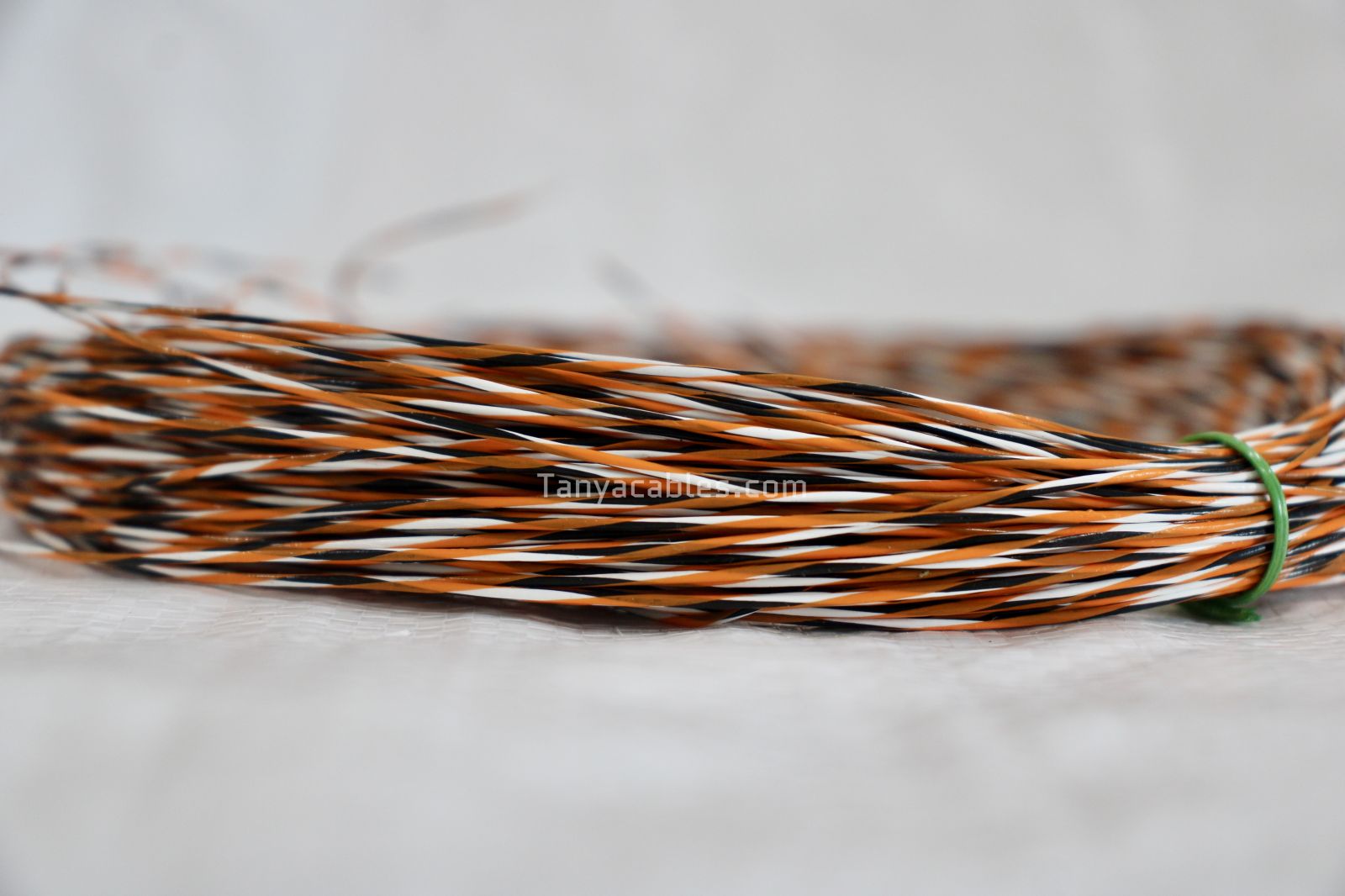

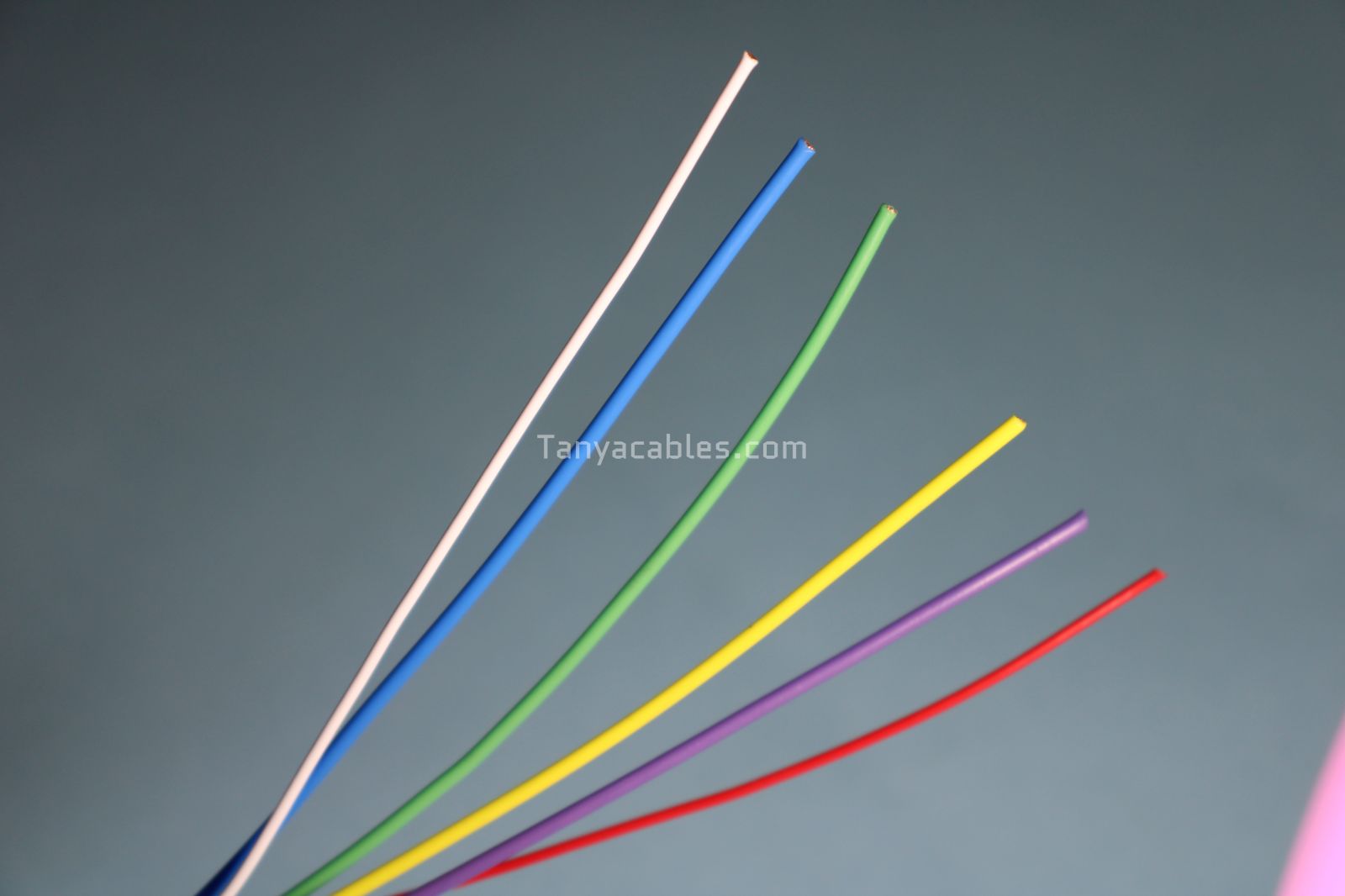

Our Single conductor Unscreened Heating wires are thin and made by multistrand as well as single solid strand conductor depending on Ohmic Value. Nominal Outer Diameter of Single conductor Insulated Heating wire is only approx. 0.80mm to 1.300mm.
We are supplying Heating cables in long lengths or pre-cut lengths with or without cold tail attached as per customer need.
MOQ : 500 Meter
Business Type | Manufacturer, Exporter, Supplier |
Cable Properties | Twin conductor Screened : 5.00MM |
Wattage | 150W to 3000W |
Voltage | 230V |
Watt Per Mtr. | 10W/M to 30W/M |
Cold Tail Length | 1 X 3M PVC |
Inner Conductor Insulation | PTFE, FEP or ETFE |
Screening | Bare Copper Braid or Drain wire with Aluminum Foil |
Outer Jacket Insulation | PVC |
Outer Diameter of Cable | Approx. 4.50mm |
Tolerance Ohmic range | -5% to +10% |
Packing | Long Length or Pre Cut Lengths in coils or reels |
Preferred Buyer From
Location | Anywhere in India |

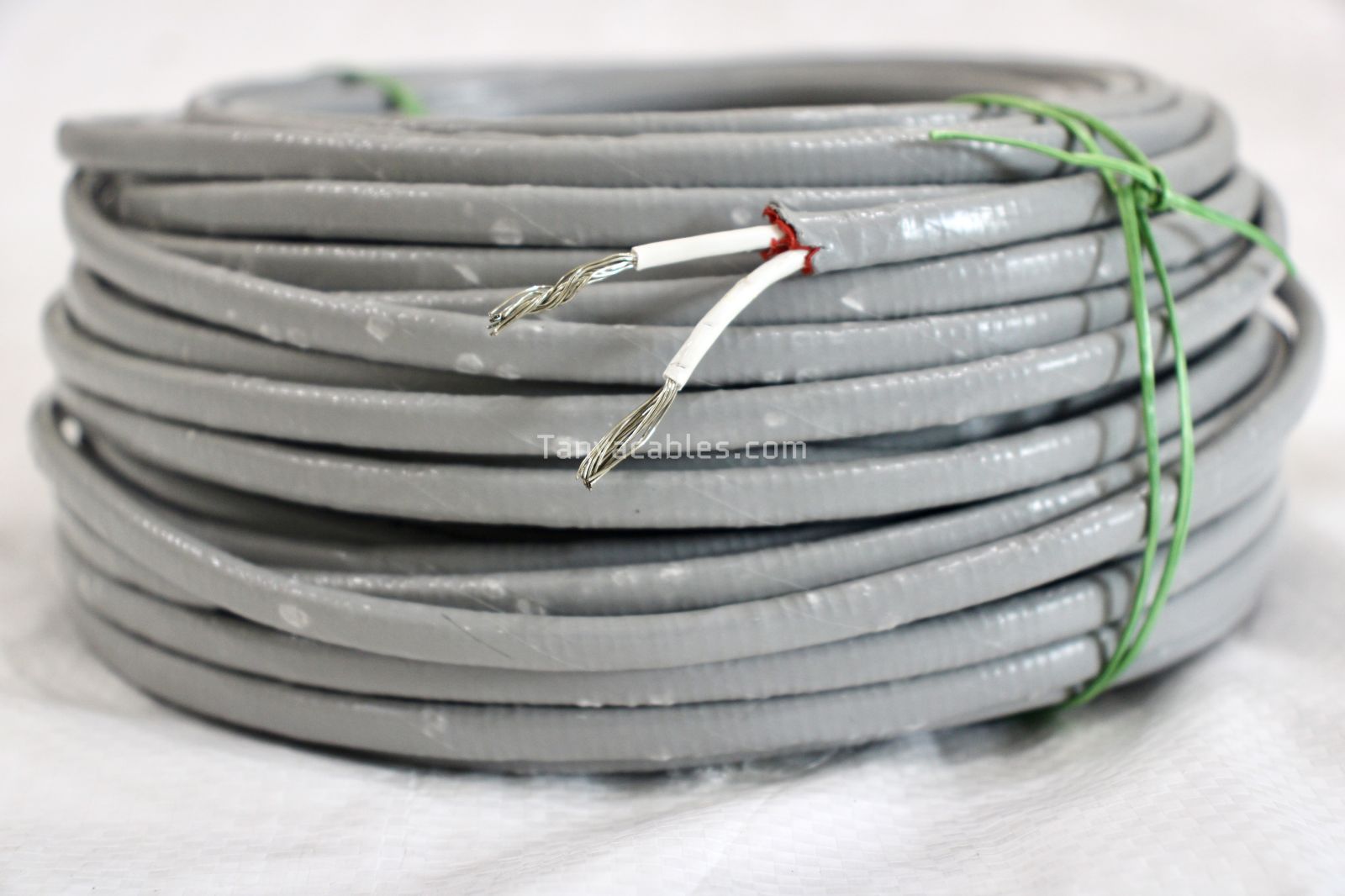

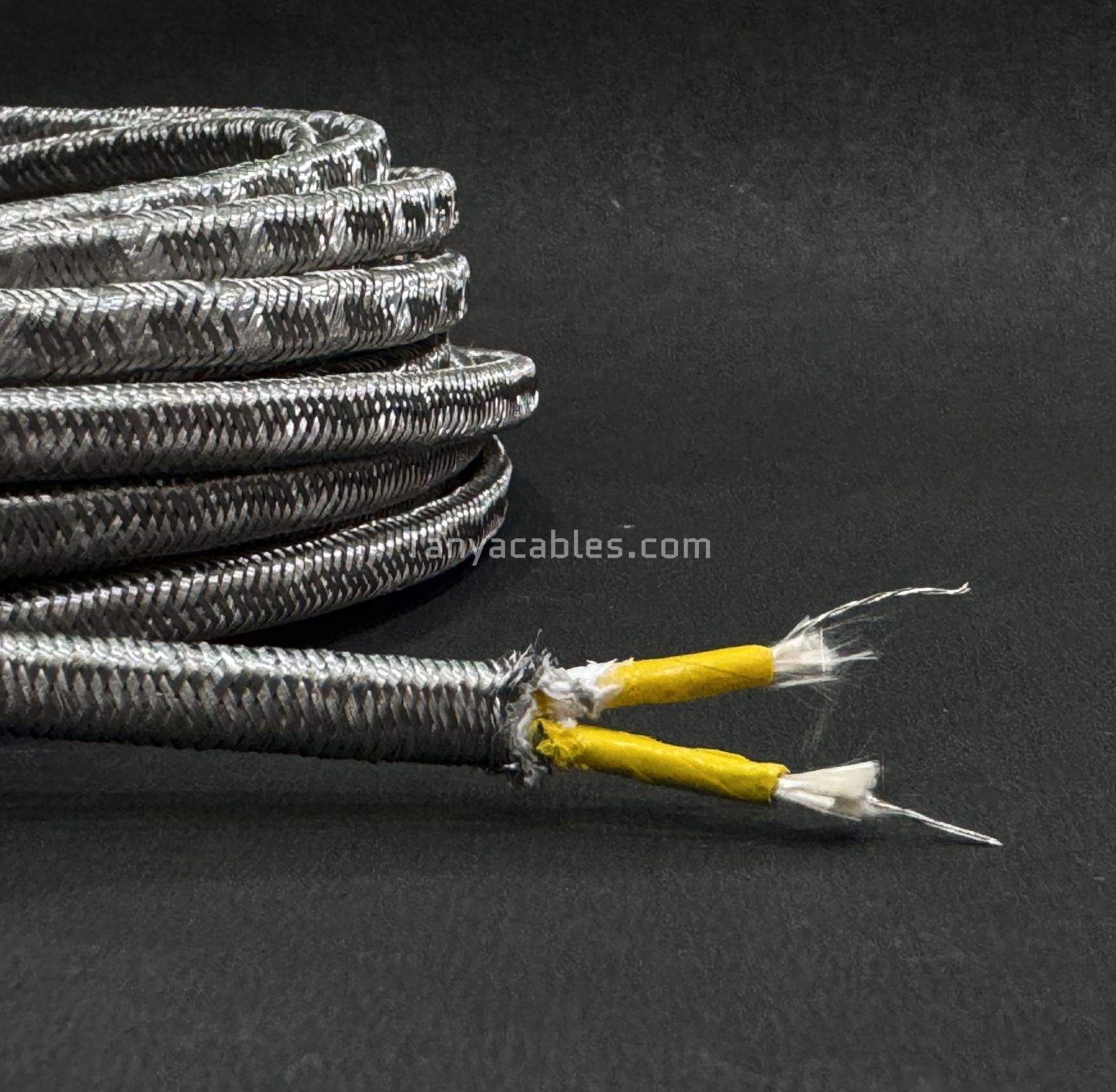

We make Insulated Twin Conductor heating cables, these Heating cables are becoming very popular among Floor Heating installers because of cold tails at only single end which makes their installation very easy and fast to make connection to junction box.
MOQ : 500 Meter
Business Type | Manufacturer, Exporter, Supplier |
Type | Heating pad |
Feature | Heating |
Operation Mode | Electric |
Automation Grade: | Automatic |
Size | Small |
Condition | New |
Usage | Personal |
Preferred Buyer From
Location | Anywhere in India |
We offer heating cables with predefined spacing and laid on Fiberglass mats with different power to make the installation of the Heating system much easier and faster. That’s why most of Installers are giving preference to install Heating Mats.
We have two variants of Heating Mats.
