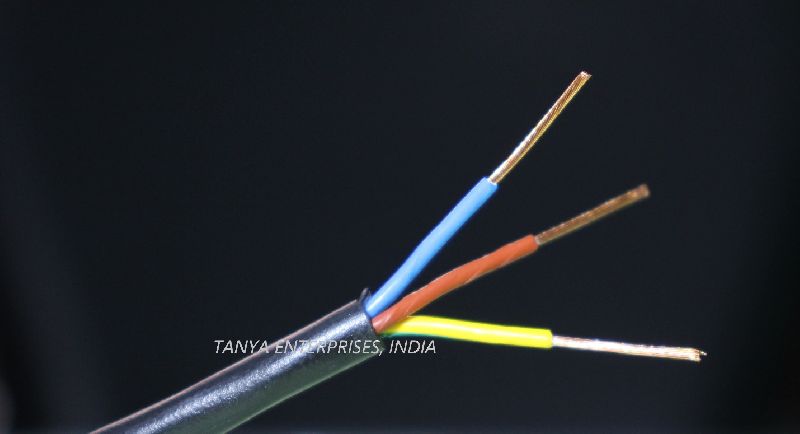

3 Core PTFE Cables
Product Details
| Item Name | 3 Core PTFE Insulated Bare Copper cable, PTFE/PVC |
| Conductor Size in AWG and Sq.mm. | AWG 18/19/30, 1.00Sq.mm. |
| Conductor Dia | 1.25 MM +/- 0.03MM |
| Conductor Material | Annealed Bare Copper |
| Core Insulation | PTFE Tape Wrapped |
| Od of Inner Core | 1.70mm +/- 0.05mm |
| Core Colors | As per Customer requirement |
| No. of Cores | 3 |
| Overall Jacket | PVC |
| Voltage Grade | 600V |
| Working Temperature | -45OC to +90OC |
| Overall Diameter | Max. 4.70mm |
Product Details
| Item Name | 3 Core X AWG 18 PTFE Insulated Bare Copper cable, PTFE/PVC |
| Conductor Size in AWG and Sq.mm. | AWG 18/19/30, 1.00Sq.mm. |
| Conductor Dia | 1.25 MM +/- 0.03MM |
| Conductor Material | Annealed Bare Copper |
| Core Insulation | PTFE Tape Wrapped |
| OD of inner core | 1.70mm +/- 0.05mm |
| Core Colors | As per Customer requirement |
| No. of Cores | 3 |
| Overall Jacket | PVC |
| Voltage Grade | 600V |
| Working Temperature | -45OC to +90OC |
| Overall Diameter | Max. 4.70mm |
Product Details
| Item Name | 3 Core X 1.00 Sq.mm. PTFE Insulated Bare Copper cable, PTFE/PVC |
| Conductor Size in AWG and Sq.mm. | AWG 18/19/30, 1.00Sq.mm. |
| Conductor Dia | 1.25 MM +/- 0.03MM |
| Conductor Material | Annealed Bare Copper |
| Core Insulation | PTFE Tape Wrapped |
| Od of Inner Core | 1.70mm +/- 0.05mm |
| Core Colors | As per Customer requirement |
| No. of Cores | 3 |
| Overall Jacket | PVC |
| Voltage Grade | 600V |
| Working Temperature | -45OC to +90OC |
| Overall Diameter | Max. 4.70mm |
