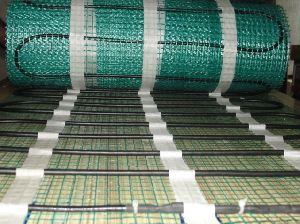

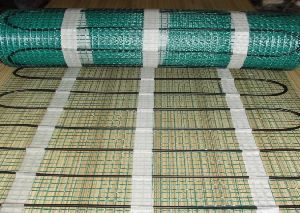

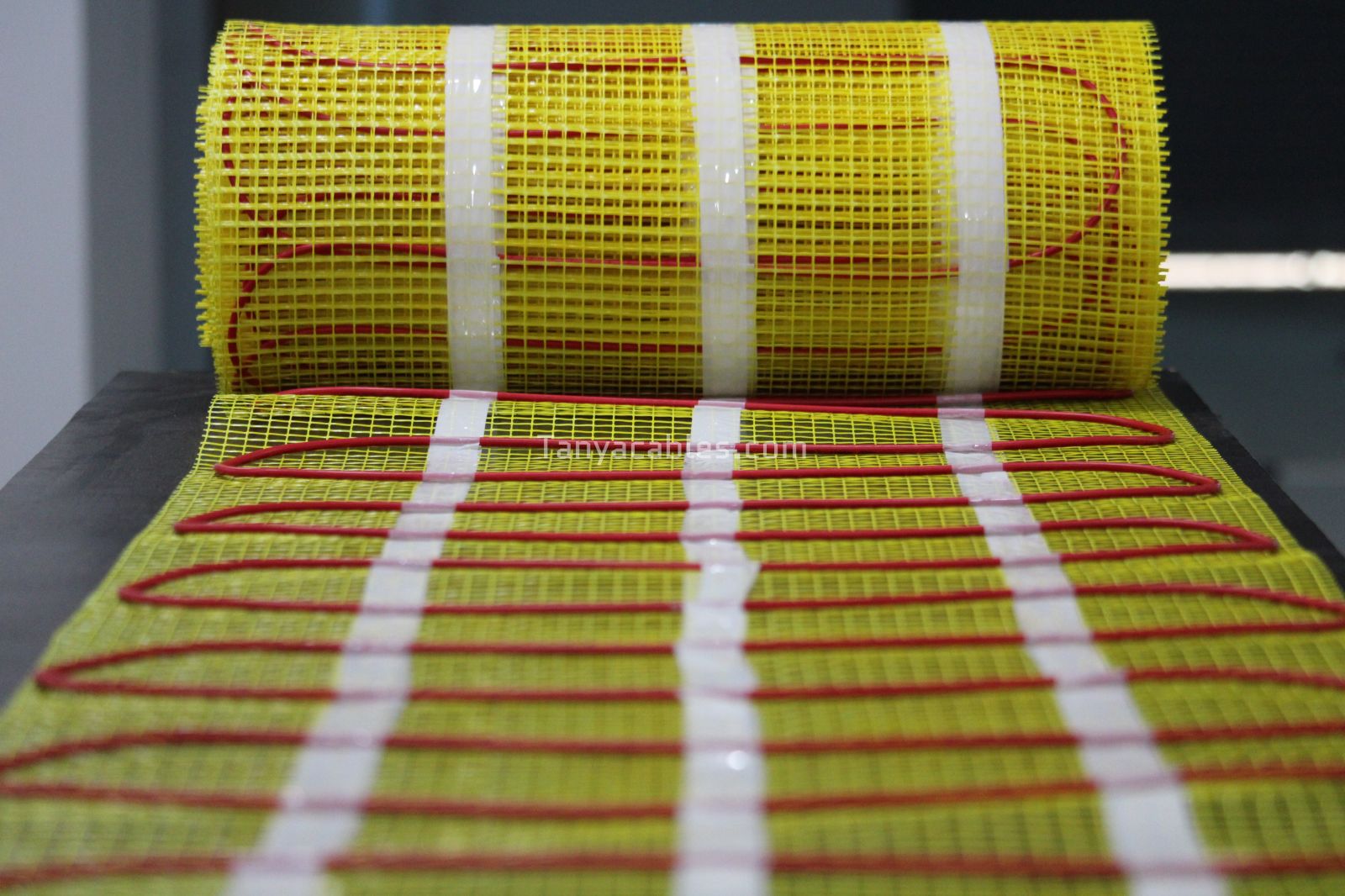

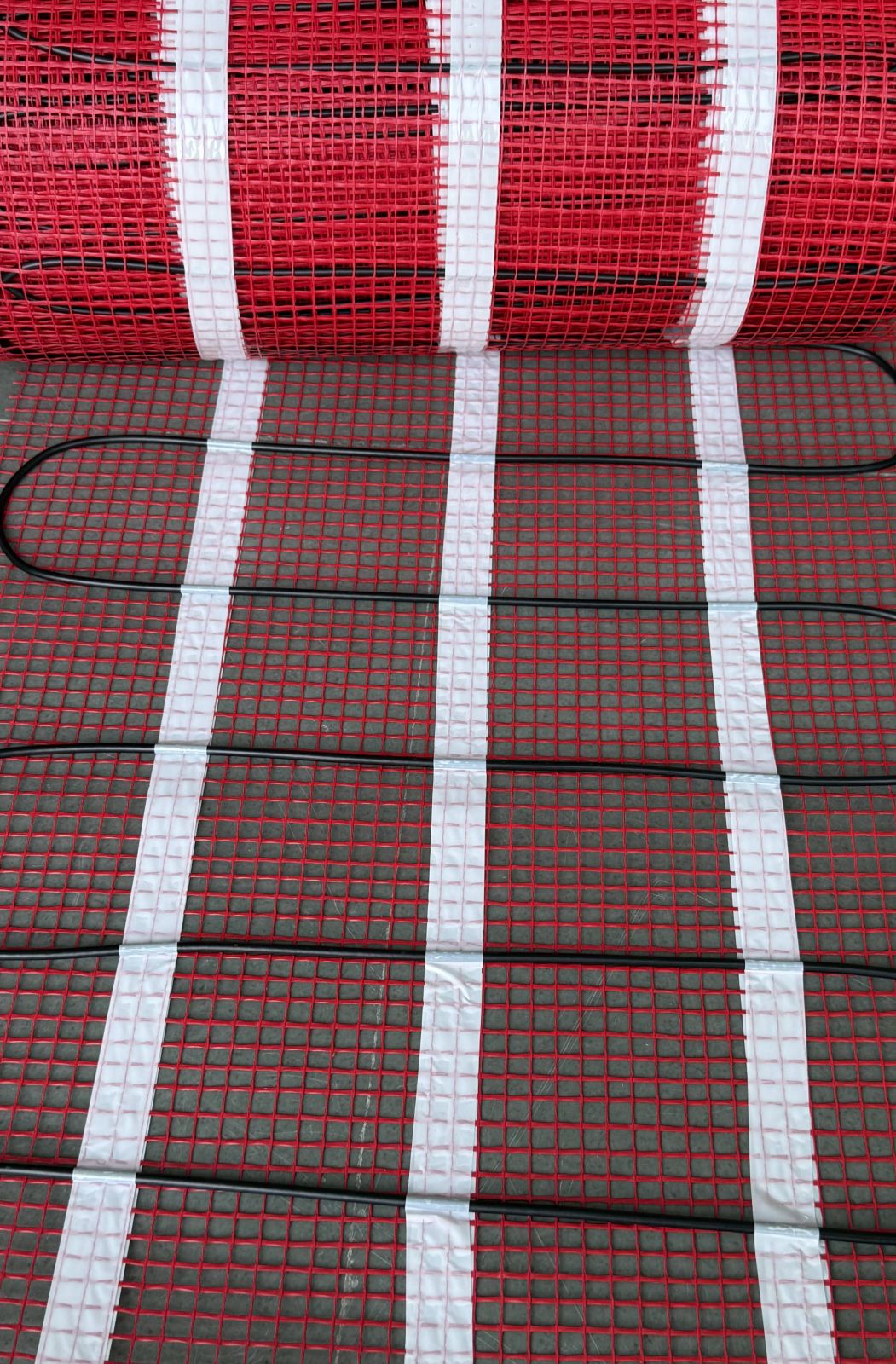

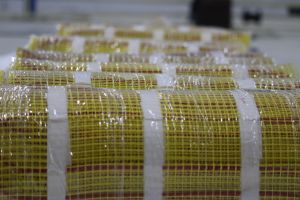

We offer heating cables with predefined spacing and laid on Fiberglass mats with different power to make the installation of the Heating system much easier and faster. That’s why most of Installers are giving preference to install Heating Mats.
We have two variants of Heating Mats.
Specifications
| Type | Heating pad |
| Feature | Heating |
| Operation Mode | Electric |
| Automation Grade: | Automatic |
| Size | Small |
| Condition | New |
| Usage | Personal |
Additional Information
| Min. Order Quantity | 500 Meter |
Single Conductor Cable mats are manufactured with Single Conductor cable containing cold tails at bo
| Cable | Single Conductor Screened Cable |
| Rated Voltage | 230 V or 110V |
| Watts per Meter2 | 120 W/M2, 150 W/M2, 180W/M2 as per requirmment |
| Width of Mat | 0.50Meter |
| Length of Mat | 2Mtr. to 20Mtr. |
| Cold Tail Length | 2 X 3Mtr. PTFE |
| Conductor Insulation | PTFE, FEP or ETFE |
| Sheath | PTFE, FEP or PVC |
| Tolerance Ohmic Value | +5% to -5% |
| Thickness of Mat | Approx. 2.50MM |
Twin Conductor Cable containing cold tail at one side.
| Cable | Twin Conductor Screened Cable |
| Rated Voltage | 230 V or 110V |
| Watts per Meter2 | 120 W/M2, 150 W/M2, 180W/M2 as per requirement. |
| Width of Mat | 0.50Meter |
| Length of Mat | 2Mtr. to 20Mtr. |
| Cold Tail Length | 3Mtr. PVC |
| Conductor Insulation | PTFE, FEP or ETFE |
| Sheath | FEP or PVC |
| Tolerance Ohmic Value | -5% to +10% |
| Thickness of Mat | Approx. 4.50MM |
